- Basic Specifications - EAN
- 4711377286558
- Basic Specifications - Manufacturer's Part Number
- 126150
- External connectivity - Audio
- - Realtek ALC897 Codec- 7.1-Channel High Definition Audio
- External connectivity - LAN
- - Intel® Killer™ BE1750x Wi-Fi 7- Bluetooth 5.4- 5G Ethernet port x 1
- External connectivity - USB
- - USB Type-A (10Gbps) x 1- USB Type-C (10Gbps) x 1- USB Type-A (5Gbps) x 6- USB Type-C (5Gbps) x 1- USB 2.0 x 6
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

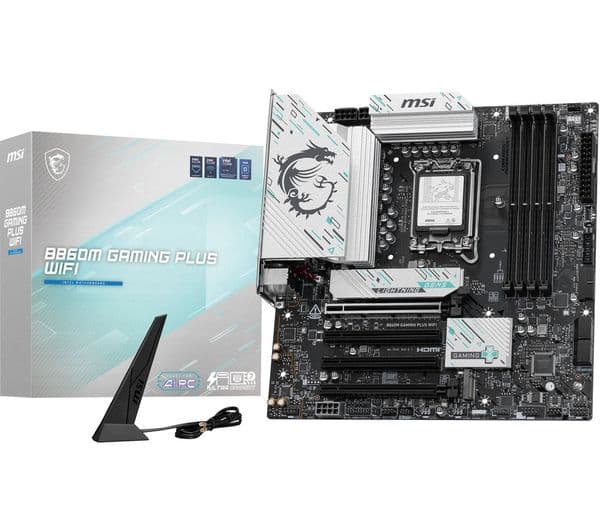

- - MSI B860M GAMING PLUS WIFI LGA1851 Motherboard- SATA cable- M.2 Screw / Standoff Set x 2- EZ WiFi antenna- EZ M.2 clip- 1 to 2 EZ conn-cable (V1)- EZ M.2 clip remover- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 243.84 x243.84 mm (H x W)
- General - Manufacturer’s guarantee
- 3 years
- Internal connectivity - Cooling
- - CPU fan x 1- Combo fan (Pump_Sys Fan) x 1- System fan x 3
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x16 slot) x 1- PCIe 4.0 (x1 slot) x 2
- Internal connectivity - Other internal connections
- - EZ Conn-header (JAF_1) x 1- Front panel (JFP) x 2- Chassis intrusion (JCI) x 1- Front audio (JAUD) x 1- Com port (JCOM) x 1- Tuning controller connector (JDASH) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 2- RGB LED connector (JRGB) x 1- TPM pin header (Support TPM 2.0) x 1
- Internal connectivity - Power
- - Thunderbolt5 card connector x 1- Power connector (ATX_PWR) x 1- Power connector (CPU_PWR) x 2- Power connector (PCIE_PWR 8pin) x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 Gen5 (128Gbps) x 1- M.2 Gen4 (64Gbps) x 1- M.2 Gen4 (32Gbps) x 1
- Internal connectivity - USB
- - USB 2.0 x 4- USB Type-A (5Gbps) x 4- USB Type-C (10Gbps) x 1
- Overview - Chipset
- Intel® B860
- Overview - Cooling features
- - Fan cooling- Extended PWM heatsink- M.2 Shield Frozr- Plated VRM heatsink- Chipset heatsink- MOSFET thermal pads
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x UDIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- Intel® Core™ Ultra Processors (Series 2)
- Overview - Socket
- Intel® LGA1851
