- Audio Output - Sound Output Mode
- Stereo
- Basic Specifications - Audio Output
- Stereo
- Basic Specifications - Cache Memory
- 12 MB
- Basic Specifications - Cache Per Processor
- 12 MB
- Basic Specifications - Card Reader
- Yes
- Basic Specifications - Dimensions (WxDxH)
- 13.56 cm x 13.56 cm x 5.01 cm
- Basic Specifications - EAN
- 4711377229128
- Basic Specifications - Environmental Standards
- ENERGY STAR Qualified
- Basic Specifications - Graphics Controller
- Intel Graphics
- Basic Specifications - Hard Drive
- No HDD
- Basic Specifications - Manufacturer's Part Number
- 4711377229128
- Basic Specifications - Model
- MSI Cubi NUC 1M I7 150U BB
- Basic Specifications - Networking
- 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, 1GbE, 2.5GbE, Bluetooth 5.3
- Basic Specifications - Optical Storage
- No optical drive
- Basic Specifications - OS Provided
- No operating system
- Basic Specifications - Processor
- 1 x Intel Core 7 (Series 1) 150U / 1.8 GHz (up to 5.4 GHz, (10-core)
- Basic Specifications - Processor Main Features
- Intel Smart Cache
- Basic Specifications - Product Description

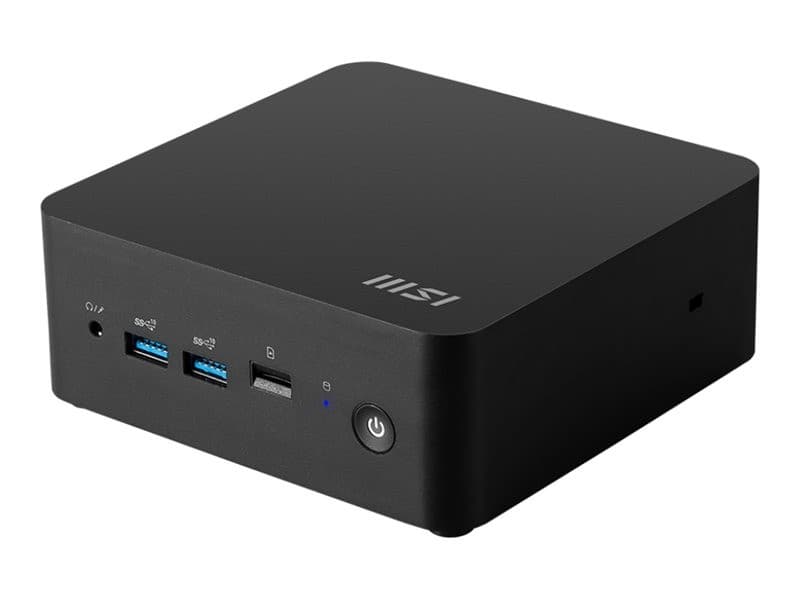

- MSI Cubi NUC 1M I7 150U BB - mini PC Core 7 150U 1.8 GHz - 0 GB - no HDD
- Basic Specifications - RAM
- 0 GB (installed) / 64 GB (max) - DDR5 SDRAM
- Basic Specifications - Software Included
- MSI Cloud Center
- Basic Specifications - Storage Controller
- SATA (SATA 6Gb/s)
- Basic Specifications - Type
- PC barebone - mini PC
- Basic Specifications - Weight
- 625 g
- Cache Memory - Cache Per Processor
- 12 MB
- Cache Memory - Installed Size
- 12 MB
- Card Reader - Supported Flash Memory Cards
- microSD
- Card Reader - Type
- Card reader
- Dimensions & Weight - Depth
- 13.56 cm
- Dimensions & Weight - Height
- 5.01 cm
- Dimensions & Weight - Weight
- 625 g
- Dimensions & Weight - Width
- 13.56 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 1.45 kg
- Expansion / Connectivity - Bays
- 1 (total) / 1 (free) x internal 2.5"
- Expansion / Connectivity - Interfaces
- 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 2 x LAN (2.5Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x headphones/microphone - mini-jack (1 front) ¦ 2 x HDMI output (2 rear) ¦ 2 x Thunderbolt 4/DisplayPort/USB-C (2 rear) (Power Delivery)
- Expansion / Connectivity - Slots
- 2 (total) / 2 (free) x PCIe 4.0 x4 - 2280 (Key M)
- General - Built-in Devices
- External power on/off switch, air cooling solution
- General - Embedded Security
- Discrete Trusted Platform Module (TPM 2.0) Security Chip
- General - Product Form Factor
- Mini PC
- General - Type
- PC barebone
- Graphics Controller - Graphics Processor
- Intel Graphics
- Graphics Controller - Video Interfaces
- HDMI, USB-C
- Hard Drive - Type
- No HDD
- Miscellaneous - Cables Included
- Serial ATA cable
- Miscellaneous - Compliant Standards
- FCC, CB, BSMI, VCCI, C-Tick, RCM, UL, cUL
- Miscellaneous - Included Accessories
- VESA mounting kit, power adapter, power cord (UK)
- Miscellaneous - Security Slot Type
- Kensington security slot
- Miscellaneous - Theft/Intrusion Protection
- Security lock slot (cable lock sold separately)
- Miscellaneous - VESA Mounting Interface
- 100 x 100 mm
- Monitor - Monitor Type
- None.
- Networking - Data Link Protocol
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.3
- Networking - Ethernet Controller
- Intel I226-V
- Networking - Ethernet Ports
- 2 x 2.5 Gigabit Ethernet
- Networking - Wireless LAN Supported
- Yes
- Networking - Wireless NIC
- Intel Wi-Fi 6E AX 211
- Operating System / Software - OS Provided
- No operating system
- Operating System / Software - Software
- MSI Cloud Center
- Optical Storage - Type
- No optical drive
- Power - Device Type
- Power adapter
- Power - Power Provided
- 120 Watt
- Processor / Chipset - Clock Speed
- 1.8 GHz (P-core) / 1.2 GHz (E-core)
- Processor / Chipset - CPU
- Intel Core 7 (Series 1) 150U
- Processor / Chipset - CPU Qty
- 1
- Processor / Chipset - Max CPU Qty
- 1
- Processor / Chipset - Max Turbo Speed
- 5.4 GHz (P-core) / 4 GHz (E-core)
- Processor / Chipset - Number of Cores
- 10-core
- Processor / Chipset - Processor Main Features
- Intel Smart Cache
- RAM - Form Factor
- SO-DIMM 262-pin
- RAM - Installed Size
- 0 GB (installed) / 64 GB (max)
- RAM - Slots
- 2 (Total) / 2 (empty)
- RAM - Technology
- DDR5 SDRAM
- Storage Controller - Channel Qty
- 1
- Storage Controller - Controller Interface Type
- SATA 6Gb/s
- Storage Controller - Type
- SATA
- Sustainability Information - ENERGY STAR Certified
- Yes
