- Basic Specifications - EAN
- 4711377290623
- Basic Specifications - Manufacturer's Part Number
- 0126156
- External connectivity - Audio
- - Realtek ALC4080 Codec- 7.1-Channel USB High Performance Audio
- External connectivity - LAN
- - Realtek 8126VB 5G LAN
- External connectivity - USB
- - USB Type-C (20Gbps) x 1- USB Type-A (10Gbps) x 2- USB Type-C (10Gbps) x 3- USB Type-A (5Gbps) x 5- USB 2.0 x 8
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

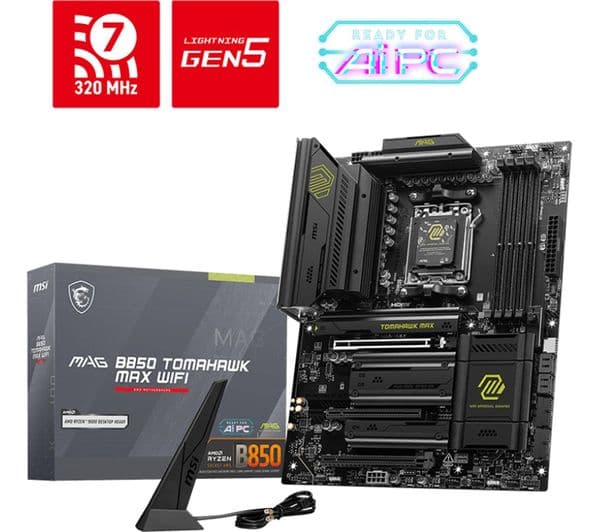

- - MSI MAG B850 TOMAHAWK MAX WIFI AM5 Motherboard- SATA cable- EZ M.2 clip- EZ M.2 clip remover- Cable stickers- EZ WiFi antena- 1 to 3 EZ conn-cable (v2)- EZ front panel cable- M.2 plate screw - Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 73 x 243 x 304 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- Internal connectivity - BIOS
- Flas BIOS
- Internal connectivity - Buttons
- Clear CMOS
- Internal connectivity - Cooling
- - CPU fan x 1- Combo Fan (Pump_Sys Fan) x 1- System fan x 6
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x16 slot) x 1- PCIe 3.0 (x1 slot) x 1
- Internal connectivity - Other internal connections
- - EZ Conn-header (JAF_2) x 1- Front panel (JFP) x 2- Chassis intrusion (JCI) x 1- Front audio (JAUD) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector (JRGB) x 1- TPM pin header (Support TPM 2.0) x 1
- Internal connectivity - Power
- - Power Connector (ATX_PWR) x 1- Power Connector (CPU_PWR) x 2- Power Connector (PCIE_PWR 8pin) x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 Gen5 (128Gbps) x 2 slots- M.2 Gen4 (64Gbps) x 1 slot- M.2 Gen4 (32Gbps) x 1 slot
- Internal connectivity - USB
- - USB 2.0 x 4- USB Type-A (5Gbps) x 4- USB Type-C (20Gbps) x 1
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- - Fan cooling- Liquid cooling- Extended heatsink- VRM heatsink- MOSFET thermal pads- M.2 Shield Frozr II- Enlarged chipset heatsink
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x UDIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AM5
