- Basic Specifications - EAN
- 4711377365338
- Basic Specifications - Manufacturer's Part Number
- 127188
- External connectivity - Audio
- - Realtek ALC897- 7.1-Channel High-Definition audio
- External connectivity - LAN
- Realtek 8125 2.5G LAN
- External connectivity - Other external connections
- - CMOS Button- Flash BIOS Button- Wi-Fi 6E- Bluetooth 5.3
- External connectivity - USB
- - USB Type-C x 2- USB 3.0 x 5- USB 2.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

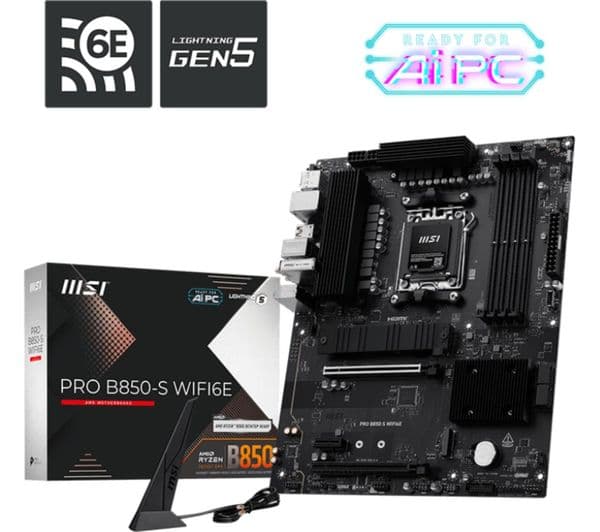

- MSI PRO B850-S WIFI 6E AM5 Motherboard
- General - Colour
- Black
- General - Dimensions
- 70 x 244 x 305 mm (W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.5 kg
- Internal connectivity - Buttons
- - Clear CMOS- Flash BIOS
- Internal connectivity - Case
- - Front Panel (JFP) x 2- Chassis Intrusion (JCI) x 1 - Front Audio (JAUD) x 1- Com Port (JCOM) x 1
- Internal connectivity - Cooling
- - CPU fan x 1- Combo pump/sys fan x 1- System fan x 4
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1 - PCIe 4.0 (x4) x 1- PCIe 3.0 (x1) x 1
- Internal connectivity - Other internal connections
- - Tuning Controller connector (JDASH) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector (JRGB) x 1- TPM 2.0 header x 1
- Internal connectivity - Power
- - ATX_PWR x 1- CPU_PWR x 2
- Internal connectivity - Sensors
- - EZ Debug LED x 4- EZ Memory Detection LED x 1
- Internal connectivity - Storage slots
- - SATA x 4- M.2 x 2
- Internal connectivity - USB
- - USB Type-C x 2- USB Type-A x 9- USB 2.0 x 4
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- Fan cooling
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x UDIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
- Overview - Socket
- AMD AM5
