- Basic Specifications - EAN
- 4711377134712
- Basic Specifications - Form Factor
- ATX
- Basic Specifications - Manufacturer's Part Number
- 123948
- Basic Specifications - Max RAM Size
- 256 GB
- Basic Specifications - Processor Socket
- LGA1700
- External connectivity - Audio
- 3.5 mm jacks x 6
- External connectivity - LAN
- - Intel® Wi-Fi 6E- Bluetooth 5.3- 2.5G Ethernet port x 1
- External connectivity - Other external connections
- PS/2 combo port x 1
- External connectivity - USB
- - USB Type-C x 1- USB 3.2 x 3- USB 2.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

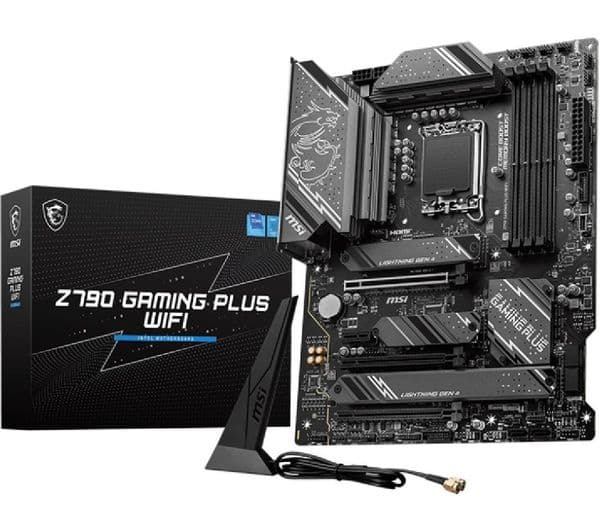

- - MSI Z790 GAMING PLUS WIFI LGA1700 Motherboard- SATA cables x 2- M.2 clips- M.2 screw- WiFi antenna- Cable sticker- Support disc- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.77 kg
- Internal connectivity - Buttons
- Flash BIOS
- Internal connectivity - Cooling
- - CPU fan 4-pin x 1- CPU water pump 4-pin x 1- System fan 4-pin x 6
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x16 slot) x 1- PCIe 3.0 (x1 slot) x 2
- Internal connectivity - Other internal connections
- - Front panel audio connector x 1- System panel connectors x 2- Chassis intrusion connector x 1- TPM module connector x 1- Tuning controller connector x 1- TBT connector x 1- Addressable V2 RGB LED connector x 2- RGB LED 4-pin x 2
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin 12V ATX x 2
- Internal connectivity - Storage slots
- - SATA x 6 (6 GB/s) - M.2 Gen4 x 4 (64 GB/s)
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 x 3- USB 2.0 x 4
- Overview - Chipset
- Intel® Z790
- Overview - Cooling features
- - Fan cooling- Liquid cooling- Extended PWM heatsink- Plated VRM heatsink- Chipset heatsink- MOSFET thermal pads- M.2 Shield Frozr
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x UDIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- - Windows 10- Windows 11
- Overview - Processor models supported
- 12th/13th/14th generation Intel® Core™ / Pentium® Gold / Celeron® processors
- Overview - Socket
- Intel® LGA1700
