- Basic Specifications - EAN
- 4719331868970
- Basic Specifications - Manufacturer's Part Number
- 127369
- External connectivity - Audio
- - Realtek® Audio CODEC- S/PDIF supported- 3.5 mm jack x 3
- External connectivity - LAN
- Realtek 2.5 GbE LAN chip
- External connectivity - Other external connections
- - PS/2 combo port- SMA antenna connectors (Wi-Fi) x 2
- External connectivity - USB
- - USB Type-C x 1- USB 2.0 x 8- USB 3.0 x 4
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

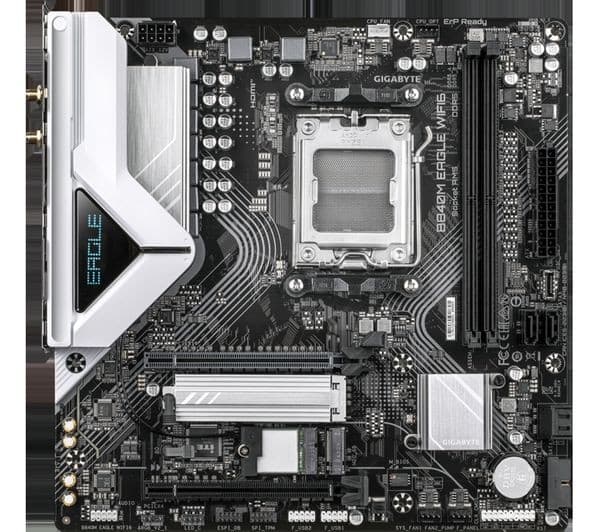

- - Gigabyte Eagle WiFi6 B840 AM5 Motherboard- Manual- Quick Installation Guide- Antenna x 2- SATA Cables x 2- M.2 thick/thin rubber pads pack x 1
- General - Colour
- Black
- General - Dimensions
- 70 x 244 x 244 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.30 kg
- Internal connectivity - BIOS
- - AMI UEFI BIOS- 256 Mbit flash- ACPI 5.0, DMI 2.7- PnP 1.0a- SM BIOS 2.7
- Internal connectivity - Buttons
- - Power button- Q-Flash Plus- Reset jumper - Clear CMOS jumper
- Internal connectivity - Case
- - Front panel header (Power LED, HDD LED, Power SW, Reset SW)- Front panel audio header- RGB strip headers
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU fan/water cooling pump header x 1- System fan header x 1- System fan/water cooling pump header x 1
- Internal connectivity - Expansion slots
- - PCIe 3.0 x 4 (x16) x 1- PCIe 4.0 (x16) x 1
- Internal connectivity - Other internal connections
- - Addressable RGB LED strip headers x 2- RGB LED strip header x 1- TMP header- USB headers
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Voltage detection- Temperature detection- Fan speed detection- Water cooling flow rate detection- Fan fail warning
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 2
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 Gen 1 x 1- USB 2.0 x 1
- Overview - Chipset
- AMD B840
- Overview - Cooling features
- - Fan cooling - Water cooling
- Overview - Form factor
- micro ATX
- Overview - Memory slots
- 2 x DDR5 (Max RAM: 128 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 (64-bit) or later
- Overview - Processor models supported
- AMD Ryzen 9000, 8000, & 7000 Series Processors
- Overview - Socket
- AMD AM5
