- Basic Specifications - Capacity
- Maximum number of clients: up to 15000 ¦ Manageable access points: up to 500 ¦ Maximum number of accounts: 1000 ¦ Maximum number of vouchers: 50000 ¦ Maximum number of WLAN groups: 500
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Basic Specifications - Device Type
- Network management device
- Basic Specifications - Dimensions (WxDxH)
- 29.4 cm x 18 cm x 4.4 cm
- Basic Specifications - EAN
- 6935364089863
- Basic Specifications - Flash Memory
- 8 GB
- Basic Specifications - Form Factor
- Rack-mountable
- Basic Specifications - Included Accessories
- Rack mount kit
- Basic Specifications - Manufacturer's Part Number
- OC300
- Basic Specifications - Model

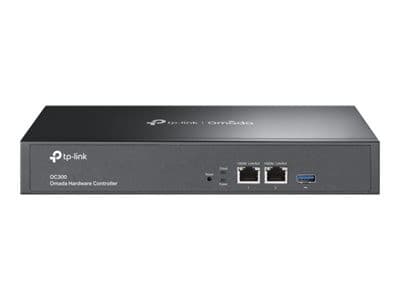

- TP-Link Omada OC300
- Basic Specifications - OS Required
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
- Basic Specifications - Power
- AC 100/240 V (50/60 Hz)
- Basic Specifications - Processor
- 1 x Cortex-A72 1.2 GHz
- Basic Specifications - Product Description
- TP-Link Omada OC300 - network management device - cloud-managed
- Basic Specifications - RAM
- 2 GB
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 2 x 1000Base-T - RJ-45 ¦ 1 x USB 3.0 - Type A
- General - Depth
- 18 cm
- General - Device Type
- Network management device
- General - Height
- 4.4 cm
- General - Width
- 29.4 cm
- Miscellaneous - Cables Included
- 1 x network cable
- Miscellaneous - Compliant Standards
- FCC, RoHS
- Miscellaneous - Included Accessories
- Rack mount kit
- Networking - Authentication Method
- Radio Service Set ID (SSID)
- Networking - Capacity
- Maximum number of clients: up to 15000 ¦ Manageable access points: up to 500 ¦ Maximum number of accounts: 1000 ¦ Maximum number of vouchers: 50000 ¦ Maximum number of WLAN groups: 500
- Networking - Cloud-Managed
- Yes
- Networking - Compliant Standards
- IEEE 802.1x
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking - Features
- Routing, NAT support, VPN support, DoS attack prevention, URL filtering, firmware upgradable, Access Control List (ACL) support, reset button, Captive Portal, metal housing, event notification, MAC address authentication, schedule reboot, layer 3 management, security slot (Kensington security lock compatible)
- Networking - Form Factor
- Rack-mountable
- Networking - Network / Transport Protocol
- PPTP, L2TP, IPSec, DDNS
- Networking - Remote Management Protocol
- SNMP, SSH, RADIUS
- Networking - Status Indicators
- Power, cloud
- Power - Power Consumption Operational
- 14.8 Watt
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- AC 100/240 V (50/60 Hz)
- Processor / Memory / Storage - Flash Memory
- 8 GB
- Processor / Memory / Storage - Processors Installed
- 1 x Cortex-A72 1.2 GHz
- Processor / Memory / Storage - RAM
- 2 GB DDR4 SDRAM
- Software / System Requirements - OS Required
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
